Before & After - Clementine's Adelaide Hall

Post by
Dan
A

delaide Hall is Clementine's signature space and as such was the focus of the redesign. As the sanctuary, it was the heart of the church, and today it is where most wedding ceremonies, receptions, concerts, dinners, presentations, film and most everything else occur.

Before

The sanctuary was the original structure, built in 1889. Forty five pews remained fixed to the heart pine floors for nearly 130 years. Red carpet lined the aisles. A hip ceiling hid the beams. Concrete coved the brick walls. Steel windows replaced the original wood framed windows sometime in the early 1900s. In 1905, the organ was added and a transept expanded the size of the building (left stage area).

Adelaide Hall before renovation
The sanctuary, 2016

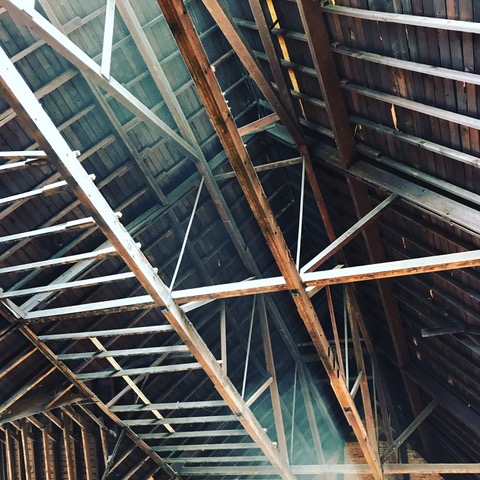

Beams above Adelaide Hall
Entering "attic" through the front gothic window

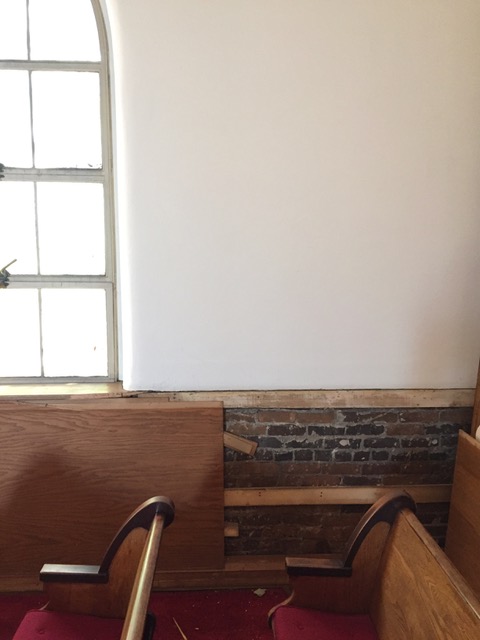

Wainscoting and brick
More early investigation: peeking behind the wainscoting

Issues & Plan

We began by removing all of the original 1889 pews. Today you can find them all over town, including at the tattoo shop down the block (we did keep four). The red carpet was removed, revealing the original heart pine floors. And we put out a "free to a good home" call for the organ, but that is another story you can read about here.

As with Little Bird Lounge, uncovering the brick wall as the first demolition objective. The brick walls were covered from the very beginning by a concrete slurry that was painted white and a wood wainscoting. Revealing the brick was arduous and quite messy. First, the concrete was chipped away by hand. Then the brick was blasted with baking soda to remove the excess concrete but not pit the brick. Last, all mortar joints were repointed as mortar from 1889 turned to putty over time. When we removed the concrete, we discovered several gothic window and the original doorway to the bell tower, all of which had been filled with rubble and whitewashed.

Another dramatic change to the room was the removal of the drop or hip ceiling. The original wide board, painted a green-grey was afixed to the bottom of the beams which are 22-feet above the floor. Sometime in recent history, white office tiles were attached to this planking. Removal of the ceiling began with the removal of the office tiles, then the planking, and finally the bracing between the beams. Surprisingly, the large gothic window and small stained glass windows above the entry were completely concealed by both the attic and the concrete slurry on the wall. We revealed these windows for the first time since construction and now light streams through the stained glass for the first time.

We solved the dilemma of what to do with a window no longer serves as a window after the building was added to over the years. We designed screens with a repeating Venitian Cross (quatrefoil) that we adopted from the chandeliers that hung in the sanctuary and are now in Little Bird Lounge, and hung these screens over the now color-selectable opening.

After removing the cement slurry, we also discovered that the two doorways into the hall had been shifted to the center of the room. The arched brick header revealed the original location and we returned the entry to those two locations. For the methodist church we're told, one entry was for the men and one for women, though they rejoined upon entering the sanctuary. Of course, we used all original bricks in the process.

Of course in addition to the reconstruction, we had to add our signature design elements. The six flying saucer like chandeliers are Poulson factory lights that we ordered from France in a Clementine gold. And the audio, video and other lighting is too much to discuss in this article but is state of the art.

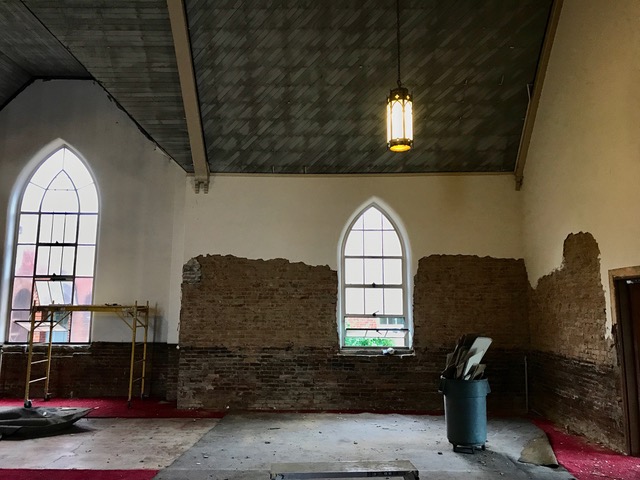

Mortar removal in Adelaide Hall
Removal of concrete covering brick wall commences
Removal of ceiling
Start of hip ceiling removal

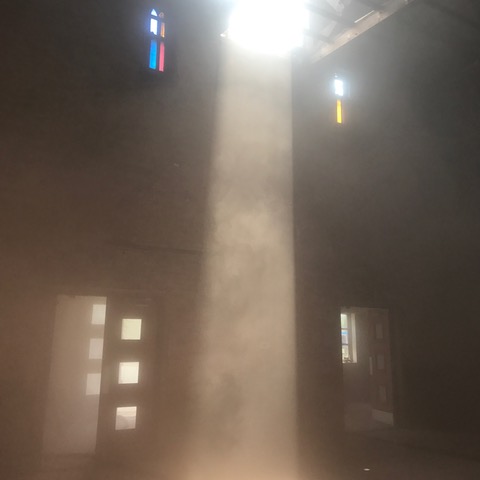

Baking soda haze
Haze from baking soda blasting of brick. As the Blues Brothers said, "We're on a mission from God."

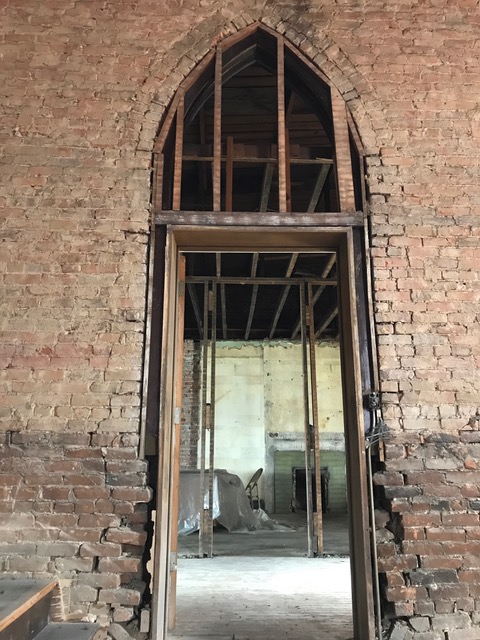

Gothic window discovered behind the wall
Gothic window discoed upon removal of the cement slurry

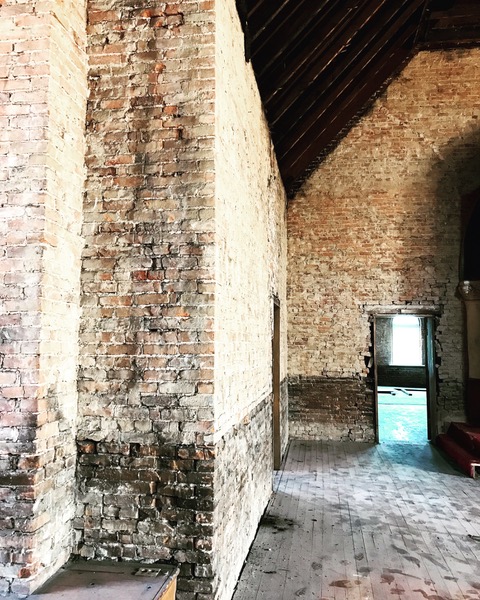

Raw brick in Adelaide Hall
"Clean" room after demolition complete. Black brick is where wainscoting had been.

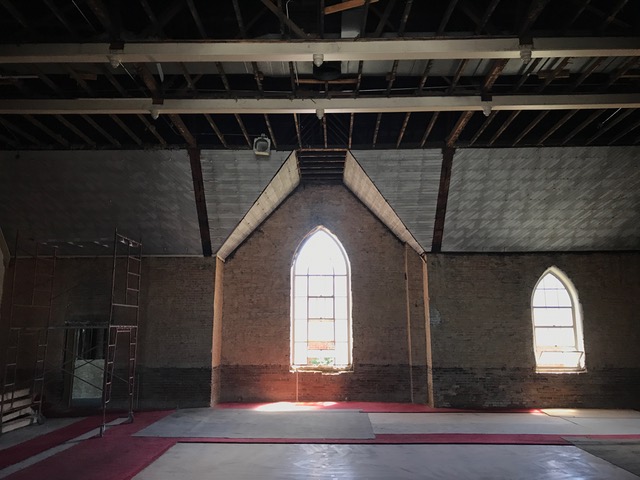

Demotion nearing completion
Most of suspended ceiling removed, only bracing remains

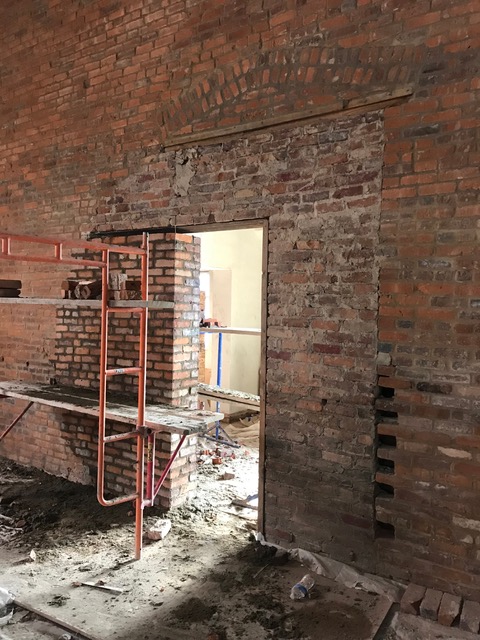

Restoring brick entry
Returning entry to original location under arched brick header
Work on the original beams
Removal of ceiling bracing

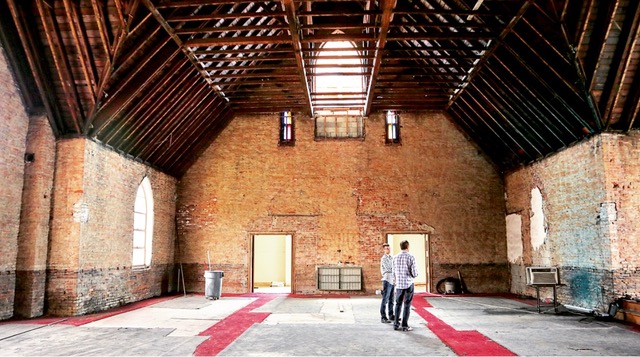

Demolition complete
Plans formulated for how it would be put back together

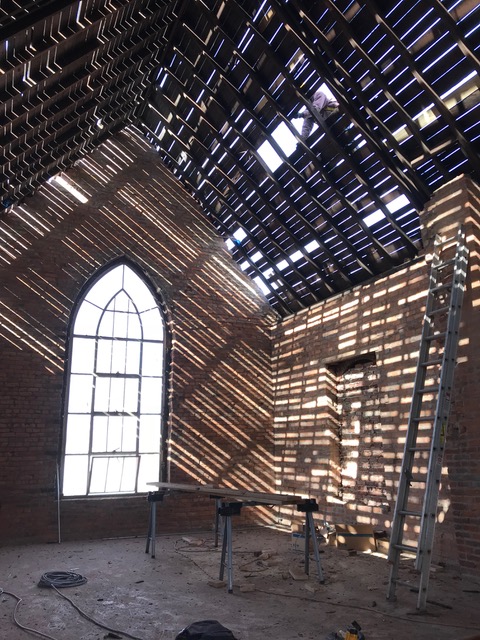

Roof removal, pray for no rain
Roof removed creating intriguing shadows
Chandelier installation
Installation of Poulson French factory chandeliers
Adelaide painting columns in Adelaide Hall
Adelaide marking the room

After

Today, Ad Hall is an approximately 2,800 sf room that tends to take people's breath away when they see it for the first time.

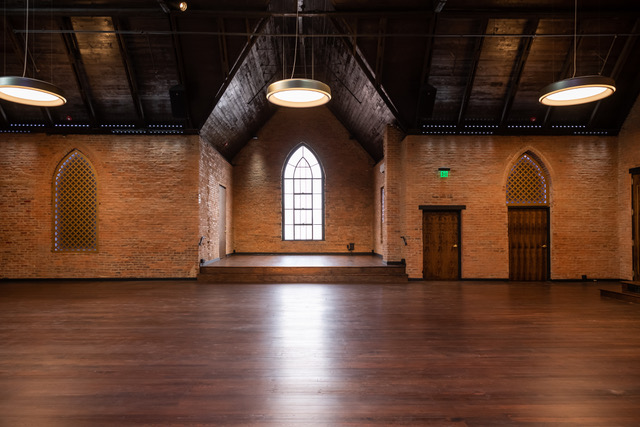

Adelaide Hall wide angle
View upon entering

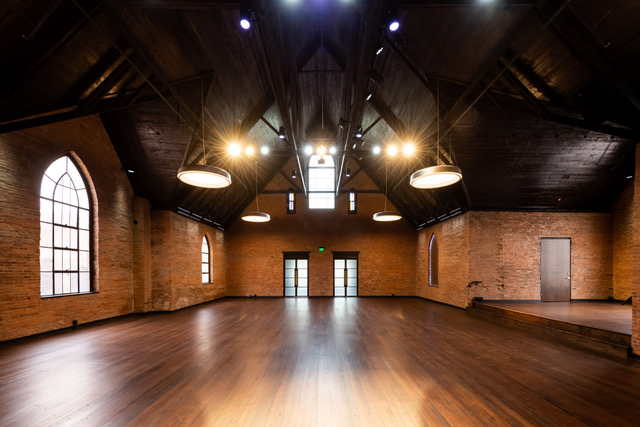

Adelaide Hall panorama
View toward entry

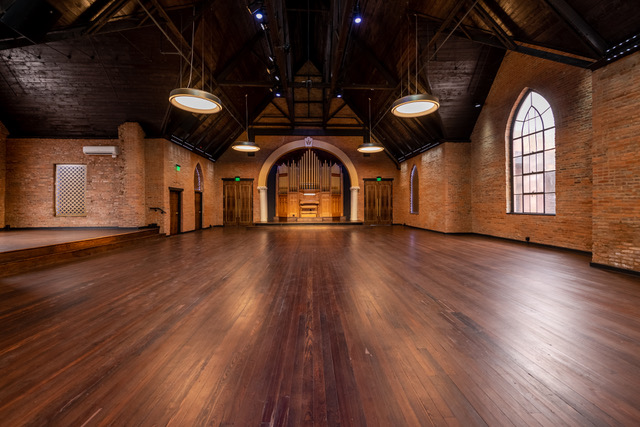

Adelaide Hall side stage
View of Side Stage
